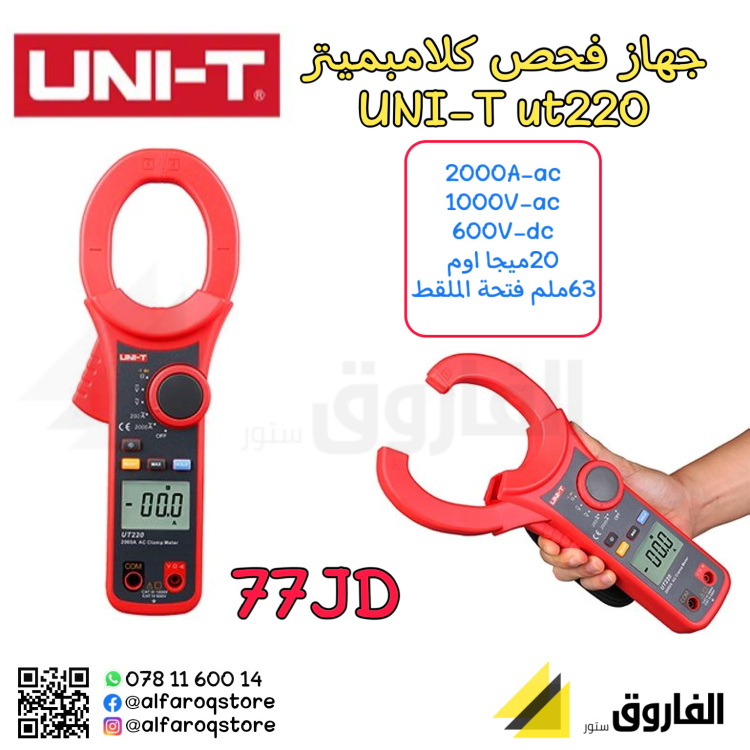

DescriptionIntroduction UT220 is a 2000A auto range digital clamp meter. It is suitable for testing large AC current with a 63mm jaw. UT220 is a 1999 count AC&DC digital clamp meter that can ensure stable performance, higher degree of safety and reliability to users. It is designed with over-load protection for all ranges, perfect for all professionals measuring currents up to 2000A.
Specification Model: UT220 AC Current (A): 200A/2000A ±(2.5%+5) 660A/2000A 600A/2500A DC Current (A): 660A/2000A 600A/2500A AC Voltage (V): 2V/20V/200V/1000V ±(1.2%+5) 6.6V/66V/660V/1000V 6V/60V/600V/1000V DC Voltage (V): 2V/20V/200V/750V ±(0.8%+1) 6.6V/66V/660V/750V 6V/60V/600V/1000V Resistance (Ω): 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(1.0%+2) 660Ω/6.6kΩ/66kΩ/660kΩ/6.6MΩ/66MΩ 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Features Display Count: 2000 Auto Range: √ Jaw Opening: 63mm Diode: √ Continuity Buzzer: √ Data Hold: √ MAX: √ LCD Backlight: √ Full Icon Display: √ Auto Power Off: √ Low Battery Indication: √ Input Impedance≥10MΩ: √
General Characteristics Power: 9V Alkaline Battery (6LF22) LCD Size: 43mm×30mm Product Color: Red and grey Product Net Weight: 390g Product Size: 298mm × 100mm × 48mm Standard Accessaries: Test Leads
